2.5G Mesh Wi-Fi 7 Router — Multi-Gig Speed for UAE Homes and Offices
A dual-band Wi-Fi 7 router with an aggregate speed of up to 5 Gbps, a 3T3R extra coverage design, a 2.5 Gigabit WAN port and Cudy Mesh support — built for multi-gig internet, gaming and large-scale coverage. Supplied across the UAE by Magnus Infotech, authorized Cudy distributor.
Product Images

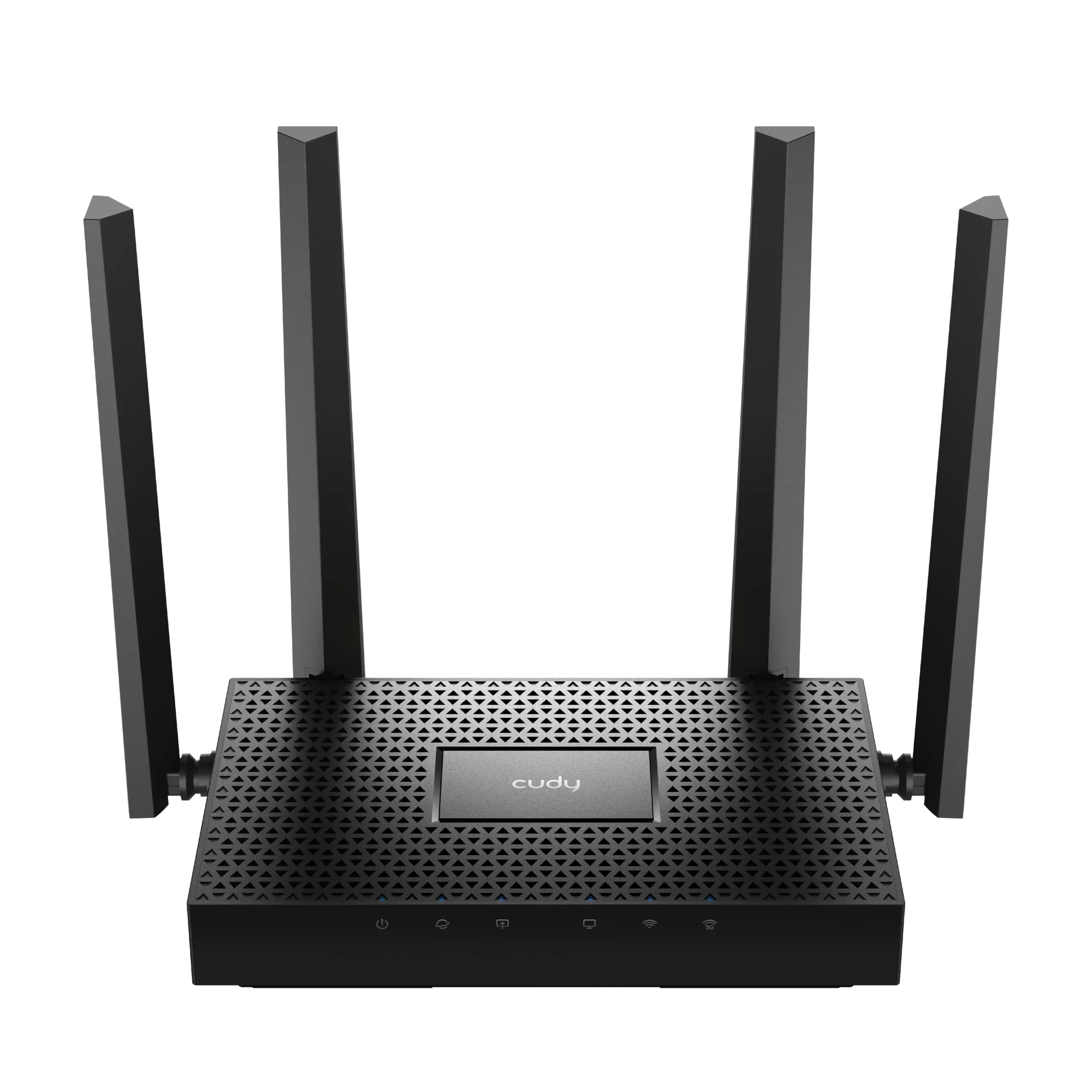

Cudy WR5000 (BE5000) 2.5G Mesh Wi-Fi 7 Router
The WR5000 is a dual-band Wi-Fi 7 router delivering an aggregate speed of up to 5 Gbps — 4324 Mbps on 5GHz and 688 Mbps on 2.4GHz — powered by a quad-core ARM Cortex-A53 processor and a 3T3R antenna design for extended coverage. A single 2.5 Gigabit Ethernet WAN port and four Gigabit LAN ports handle wired connectivity, while Cudy Mesh with wireless or wired backhaul extends Wi-Fi coverage across larger homes, villas or office spaces. Built-in VPN server and client support, a guest network and parental controls round out a feature set aimed at both home and small business use.
Magnus Infotech is an authorized Cudy distributor in the UAE, supplying the WR5000 to resellers, system integrators and business technology partners across the UAE, backed by pre-sales support, logistics and after-sales technical assistance. Explore related networking & wireless solutions.
WR5000 Feature Highlights
Built for Multi-Gig, Large-Scale Wi-Fi
5-Stream Dual-Band Wi-Fi 7
4324 Mbps (5GHz, 3 streams) + 688 Mbps (2.4GHz, 2 streams) for an aggregate of roughly 5 Gbps.
2.5G WAN + 4× GbE LAN
Fast wired backbone for multi-gig internet plans.
200 Devices
Recommended client upper limit for busy multi-device homes and offices.
Cudy Mesh
Wireless or wired backhaul with multi-band backhaul support for whole-home coverage.
VPN Server & Client
WireGuard, OpenVPN, IPsec, Zerotier, PPTP and L2TP.
Cudy App & Cloud Control
Local and remote management, including cloud-based control.
Wi-Fi 7 Performance
The WR5000 uses Wi-Fi 7 technology throughout, including several efficiency features designed to reduce congestion and improve throughput in busy wireless environments.
- 4K-QAM modulation for higher data density per transmission
- MLO (Multi-Link Operation), MRU and Puncturing for more efficient spectrum use
- OFDMA and MU-MIMO to serve multiple devices simultaneously
- BSS Color to reduce interference between overlapping networks
Radio & range
True beamforming and a 160MHz maximum channel width support strong throughput at range, backed by a 3T3R antenna design.
Range & wall performance
Tested in open-space environments with minimal interference; actual range varies with layout and wall materials.
Mesh & Coverage
For larger homes or offices, the WR5000 works with Cudy Mesh to extend coverage using additional units, without needing separate access point hardware.
- Cudy Mesh support across multiple units
- Wireless backhaul or wired backhaul between mesh units
- Multi-band backhaul support
- Flexible operation modes — Wi-Fi Router/WISP, Access Point/Client, Range Extender
Security & VPN
The WR5000 includes network-level security controls alongside VPN server and client functionality, useful for both home privacy and secure business remote access.
WPA/WPA2/WPA3
Modern Wi-Fi security standards including WPA3, plus a guest network on both bands.
SPI Firewall & DoS Protection
Stateful packet inspection, DoS protection and Block PING for perimeter defence.
VPN Server & Client
WireGuard, OpenVPN, IPsec, Zerotier, PPTP and L2TP protocols supported.
Parental Controls
Per-device management, web/domain/IP filtering, Wi-Fi time schedules and MAC filtering.
Protocol Passthrough
IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP and RTSP passthrough for compatibility with other services.
DNS Controls
DNS over TLS, manual DNS, rebind protection and provider choice (Cloudflare, Google, Quad9, custom).
App, Cloud & Fleet Management
The WR5000 can be configured and monitored locally or remotely, which is useful both for home users and for integrators managing multiple units.
- Local configuration via web page or the Cudy app
- Remote management via app control, HTTPS config page or TR069/TR098/TR111/TR181
- Firmware upgrade via local update, over-the-air app update or online update
- Dashboard covering internet, WAN/LAN, Wi-Fi, VPN and DHCP status alongside connected-device management
Built for diverse teams
The management interface lists around 29 supported languages spanning European and Asian markets — worth noting that Arabic is not among the languages listed in the current datasheet, so confirm this directly if it's a requirement for your deployment.
Cudy WR5000 Technical Specifications
Hardware & Wireless
| CPU | Quad-Core, ARM Cortex-A53 |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| RAM | 512 MB (4 Gbit) DDR4 |
| 5GHz Wi-Fi Speed | 4324 Mbps (3 spatial streams) |
| 2.4GHz Wi-Fi Speed | 688 Mbps (2 spatial streams) |
| Wi-Fi Antennas | 4× fixed internal (5GHz: 3×, 2.4GHz: 2×) |
| Beamforming | Yes |
| Max Range | Up to 220m (722ft), open-space test conditions |
| Wall Performance (tested) | 2 wooden walls <10cm each, or 1 concrete wall <20cm / 2 concrete walls <10cm each |
Wi-Fi 7 Software Features
| Wi-Fi Standard | Wi-Fi 7 |
| Max Modulation | 4K-QAM |
| Wi-Fi Efficiency | MLO, MRU, Puncturing, OFDMA, MU-MIMO, BSS Color |
| Max Capacity | 512 devices (theoretical) |
| Recommended Client Limit | 200 devices |
| Max Channel Width | 160 MHz |
| Wi-Fi Security | WPA / WPA2 / WPA3 |
| Guest Network | 2.4GHz and 5GHz |
| WPS | Yes |
Mesh & Operation Modes
| Mesh | Cudy Mesh |
| Mesh Backhaul | Wireless backhaul, wired backhaul |
| Multi-Band Backhaul | Yes |
| Operation Modes | Wi-Fi Router / WISP, Access Point / Client, Range Extender |
| WAN Mode | DHCP, Static IP, PPPoE, PPTP, L2TP |

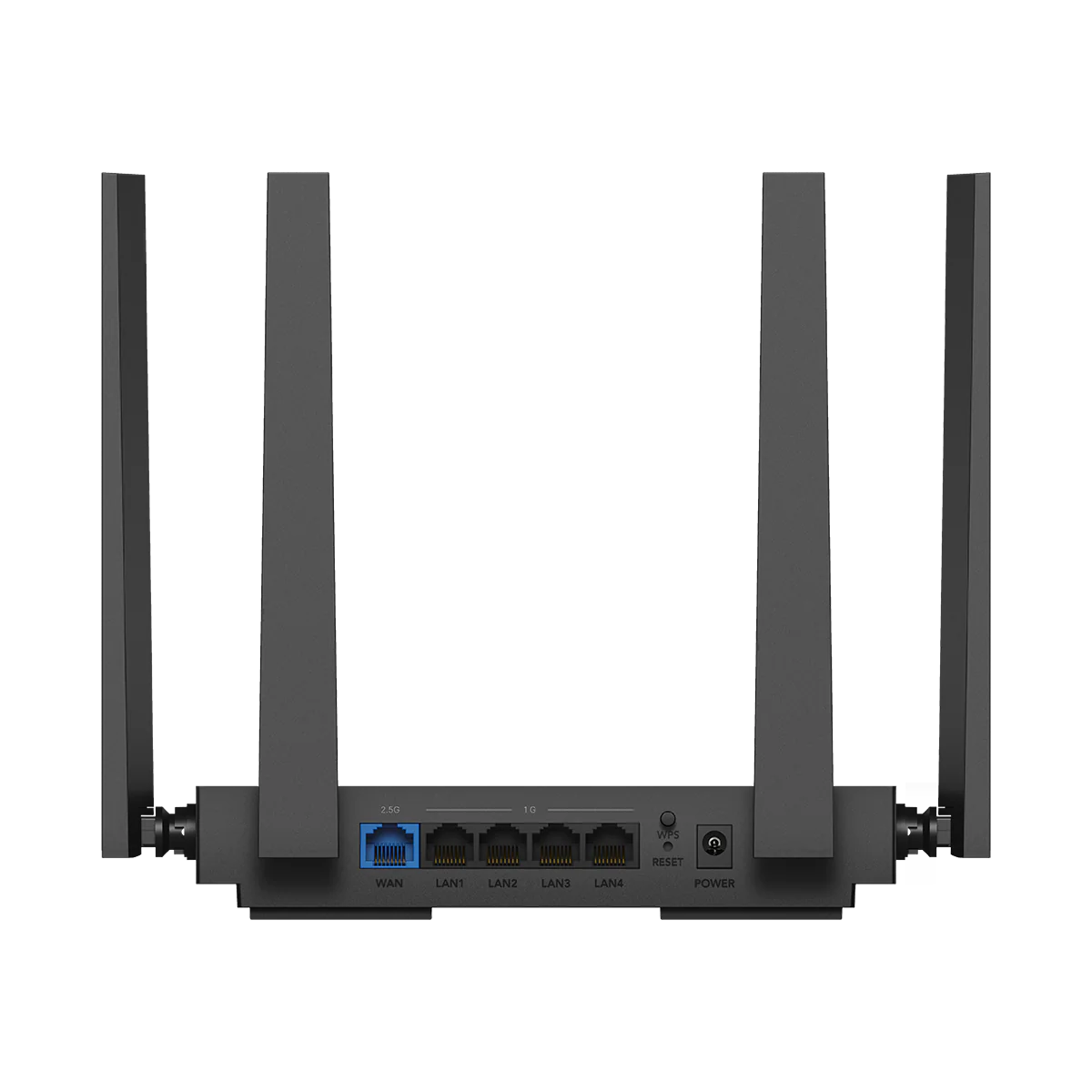

Ports & Interfaces
| 2.5G RJ45 Ports | 1 (WAN) |
| Gigabit RJ45 Ports | 4 (LAN) |
| Physical Buttons | WPS button, Reset button |
| Power Interface | DC jack |
Network & Security Software
| Network Management | QoS with per-user rate limiting, DHCP server/relay with address reservation, IPv4/IPv6 dual-stack, IPTV/VLAN tagging, IGMP proxy/snooping, port forwarding/triggering, UPnP, DMZ |
| Firewall | SPI firewall, DoS protection, Block PING, Application Layer Gateway |
| VPN | Server & client — WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
| Protocol Passthrough | IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP |
| DNS | DNS over TLS (Cloudflare/Google/Quad9/custom), manual DNS, rebind protection |
| Other | Wake on LAN, online detection, multicast support |
Management & Diagnostics
| Parental Controls | All-device and per-device management; web/domain/IP filtering, Wi-Fi time schedule, MAC filtering, IP/MAC binding |
| Local Control | Config web page, Cudy app |
| Remote Control | App control, HTTPS config page, TR069/TR098/TR111/TR181 |
| Firmware Upgrade | Local update, over-the-air app update, online update |
| Diagnostics | Ping, traceroute, NSLookup, system log, timed reboot, backup & restore |
| Languages | ~29 languages including English, German, French, Spanish, Japanese, Korean, Simplified & Traditional Chinese and more |
Power & Physical
| Power Input | 12V ⎓ 1.5A (adapter input 100–240V~, 50/60Hz) |
| Max Power Consumption | 14W |
| Idle Power Consumption | 4.9W |
| Dimensions (Main Unit) | 183.3 × 109 × 34 mm |
| Antenna Length | 175 mm |
| Installation | Desktop or wall-mount |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Certifications | FCC, CE |
Applications and Use Cases
Multi-gig speed, mesh coverage and VPN support make the WR5000 a fit for a range of home and small business scenarios.
Large Homes & Villas
Mesh backhaul extends Wi-Fi 7 coverage across bigger floor plans.
Multi-Gig Internet Upgrades
2.5G WAN suits fibre plans beyond standard Gigabit internet.
Gaming & Streaming Households
High throughput and low latency for 4K/8K streaming and online gaming.
Small Offices
200-device capacity and VPN support for growing SMB teams.
Secure Remote Access
VPN server support for staff connecting back to the office network.
Shared & Family Networks
Guest network and parental controls for households with varied user needs.
Wi-Fi Upgrades for Older Homes
Router / WISP / Access Point / Range Extender modes suit varied deployment needs.
Multi-Unit Fleet Deployments
TR069-based remote management suits integrators managing several units.
Cudy Authorized Distributor in the UAE
Magnus Infotech Trading LLC is an authorized Cudy distributor in the UAE, supplying Cudy networking products — including the WR5000 — to resellers, system integrators and business partners, backed by pre-sales consultancy, warehousing, logistics and technical support.
- Pre-sales consultancy & solution design
- Warehousing across the UAE
- Logistics & delivery support
- Ongoing technical support
Networking Products Supplied Across the UAE
Magnus Infotech supplies networking products across the UAE, serving reseller and integrator partners in the following Emirates.
Frequently Asked Questions
What is the Cudy WR5000 (BE5000) used for?
What Wi-Fi speeds does the WR5000 support?
Does the WR5000 support mesh Wi-Fi?
What ports does the Cudy WR5000 have?
Does the WR5000 support VPN?
Does Magnus Infotech supply Cudy products in the UAE?
How can I get pricing for the Cudy WR5000 in the UAE?
