D-Link DPH-200SE — Hotel IP Phone
A SIP 2.0 hotel IP phone with a 3.5" color LCD, HD voice and 6 programmable soft keys, built with hospitality-specific features — Do Not Disturb, Message Waiting Indicator, multi-language display and mass auto-provisioning for hotel-wide rollout. Supplied across the UAE by Magnus Infotech, D-Link distributor.
Product Images

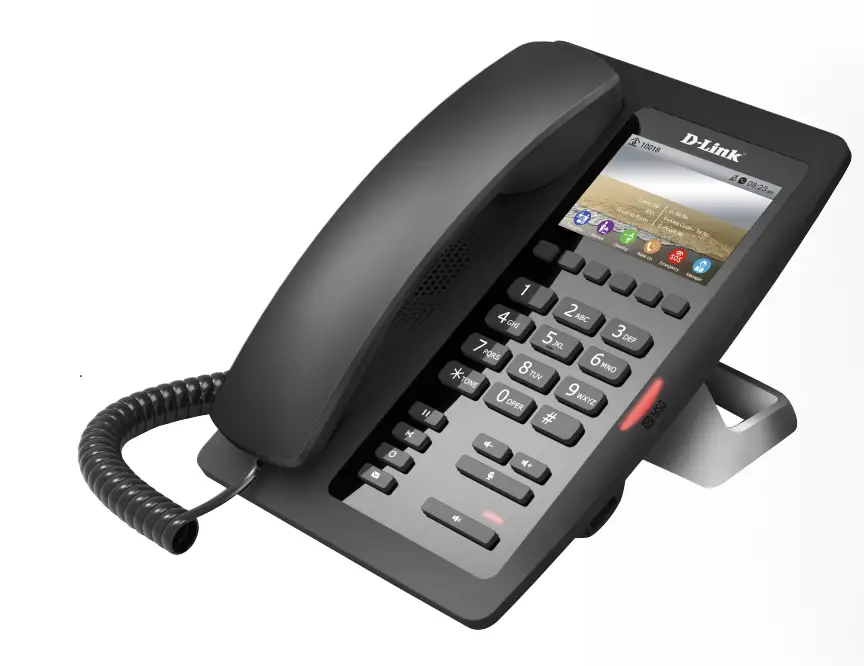

D-Link DPH-200SE Hotel IP Phone
The DPH-200SE is a SIP 2.0 (RFC3261) IP phone built specifically for hotel guest rooms, running on an embedded VxWorks OS with a 3.5" (480x320) color LCD and 6 programmable soft keys. HD voice, full-duplex acoustic echo cancellation and a dynamic jitter buffer keep calls clear, while hospitality-relevant features — Do Not Disturb, Message Waiting Indicator, outgoing call barring, multi-language web display and emergency call — suit the day-to-day needs of a hotel front desk and guest rooms. For property-wide rollout, the phone supports auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069, so hotel IT teams can deploy and manage large numbers of units centrally.
Magnus Infotech is the D-Link distributor in the UAE, supplying the DPH-200SE to hospitality projects, resellers and system integrators. See the D-Link brand page or networking solutions for hotels in the UAE.
Key Features
3.5" Color LCD Display
480x320 resolution screen with multi-language display support.
6 Programmable Soft Keys
Configurable per property for quick access to common functions.
HD Voice Quality
HD handset with acoustic echo cancellation and noise reduction.
Emergency Call & Web Dial
Direct emergency calling and browser-based dialing support.
Auto-Provisioning
FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069 for mass rollout.
Multicast & Action URL/URI
Supports multicast paging and action URL/URI for integrations.
Built for Hotel Guest Room Deployments
Beyond core telephony, the DPH-200SE carries a call-management feature set aimed squarely at hospitality operations — front desk control, guest privacy and cost management on outgoing calls.
- Do Not Disturb gives guests direct control over call interruptions
- MWI (Message Waiting Indicator) alerts guests to new voicemail or messages
- Barring function for outgoing calls helps control international/long-distance costs
- Auto answer and call transfer (unattended/attended/semi-attended) speed up front-desk handling
- CLIR/CLIP, flexible dial plan and call logs (missed/incoming/outgoing) for guest-services oversight
Audio & Call Clarity
A full audio-processing stack keeps calls clear across varying network conditions.
- HD voice via HD handset; codecs G.711A/U, G.723.1 (high/low), G.729AB, G.722, G.726-32
- Full-duplex Acoustic Echo Canceller (hands-free mode, 96ms tail-length)
- Voice Activity Detection, Comfort Noise Generation, Background Noise Estimation, Noise Reduction
- Packet Loss Concealment and Dynamic Adaptive Jitter Buffer (up to 300ms)
- DTMF via in-band, RFC2833 (out-of-band DTMF-Relay) and SIP INFO
Network, Security & IT Management
Standard networking and remote-management tools for IT-managed hotel deployments.
Bridge-Mode Ethernet
10/100M WAN/LAN ports; Static/DHCP/PPPoE IP configuration.
802.1X Network Access Control
Port-based authentication for controlled network access.
VPN Support
L2TP (basic unencrypted) and OpenVPN.
VLAN & QoS
Traffic segmentation and prioritization for voice quality.
Web Management Portal
Web-based packet dump, config export/import, firmware upgrade, syslog.
Multi-SIP Server Support
1 SIP server plus backup SIP proxy server, UDP/TCP/TLS transport.
Physical Specifications
D-Link DPH-200SE Technical Specifications
| Signaling | SIP 2.0 (RFC3261) and correlative RFCs |
| SIP Servers | 1 SIP server, plus backup SIP proxy server |
| Transport | SIP over UDP / TCP / TLS |
| SIP Config | SIP domain, SIP authentication (none/basic/MD5), DNS name of server, Peer-to-Peer / IP Call |
| Other | DTMF hidden, Action URL/Active URI, Multicast, Web dial, Emergency call |
| OS | VxWorks |
| Ethernet | WAN/LAN: 10/100M ports (Bridge mode) |
| IP Configuration | Static / DHCP / PPPoE |
| Network Access Control | 802.1X |
| VPN | L2TP (basic unencrypted) / OpenVPN |
| Traffic Management | VLAN, QoS |
| Soft Keys | 6, programmable |
| Display | Multi-language display (web) |
| Voice | HD voice via HD handset |
| Codecs | G.711A/U, G.723.1 (high/low), G.729AB, G.722, G.726-32 |
| DTMF | In-band, RFC2833, SIP INFO |
| Echo Cancellation | Full-duplex AEC, hands-free mode, 96ms tail-length |
| Voice Processing | VAD / CNG / BNE / Noise Reduction |
| Packet Handling | Packet Loss Concealment; Dynamic Adaptive Jitter Buffer up to 300ms |
| Auto-Provisioning | FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIP PnP / TR-069 |
| Management | Web Management Portal, Web-based Packet Dump |
| Configuration | Export / Import |
| Maintenance | Firmware Upgrade, Syslog |
| LCD | 3.5" (480×320) color screen |
| Adapter | Input AC100-240V; Output DC 5V/1A |
| WAN / LAN Ports | 10/100 BASE-T RJ-45 (WAN); 10/100 BASE-T RJ-45 for PC (LAN) |
| Handset | RJ9 |
| Power Consumption | Idle: 2.5W; Active: 2.8W |
| Operating Temperature | 0–40°C |
| Relative Humidity | 10–65% |
| Chipset | Broadcom |
| Memory | 16MB SDRAM / 8MB Flash |
| Dimensions | 213 × 170 × 130 mm |
| Call Handling | Call transfer (unattended/attended/semi-attended), call holding, call waiting, redial, call completion |
| Hospitality | MWI, flexible dial plan, barring function for outgoing calls, Do Not Disturb, auto answer |
| Privacy | CLIR (rejects anonymous calls), CLIP (to make an anonymous call) |
| Other | Dial without registration; call logs (missed/incoming/outgoing) |
Applications and Use Cases
Purpose-built for hotel guest room and hospitality telephony.
Hotel Guest Rooms
Standard in-room telephony with hospitality call controls.
Front Desk & Concierge
Call transfer and multi-line handling for guest services.
Serviced Apartments
Guest-facing telephony with usage-cost controls.
Resorts & Hospitality Villas
Multi-language display for international guests.
Boutique Hotels
Simple property-wide auto-provisioned rollout.
International Guest Support
Multi-language web display and emergency call access.
D-Link Distributor in the UAE
Magnus Infotech Trading LLC is the D-Link distributor in the UAE, supplying D-Link's IP phone and networking range — including the DPH-200SE hotel phone — to resellers, system integrators and hospitality projects, backed by pre-sales consultancy, warehousing, logistics and technical support.
- Pre-sales consultancy & solution design
- Warehousing across the UAE
- Logistics & delivery support
- Ongoing technical support
D-Link IP Phones Supplied Across the UAE
D-Link's IP phone range is supplied across the UAE through Magnus Infotech, serving reseller, integrator and hospitality partners in the following Emirates.
Frequently Asked Questions
What is the D-Link DPH-200SE?
Does it support Do Not Disturb and Message Waiting Indicator?
Can hotels bulk-deploy the DPH-200SE across many rooms?
What voice codecs does the DPH-200SE support?
How is the DPH-200SE powered?
Does Magnus Infotech supply D-Link IP phones in the UAE?
Download the D-Link DPH-200SE Datasheet
Product Datasheet
Full specification sheet from D-Link's official download centre.
Download DatasheetRequest a Quote for the D-Link DPH-200SE
Send your requirements to the Magnus Infotech sales team for pricing, availability and hotel deployment support across the UAE.
Or email us directly at [email protected]
