NETGEAR GS724Tv6 — 24-Port Gigabit Smart Switch
A non-blocking 24-port Gigabit Smart Switch with 2 dedicated Gigabit SFP ports, L2+/Layer 3 Lite features and NETGEAR Insight cloud management — built for converged voice, video and data networks, big or small. UAE ordering code: GS724T-600PES. Supplied across the UAE by Magnus Infotech, official NETGEAR distributor.
Product Images

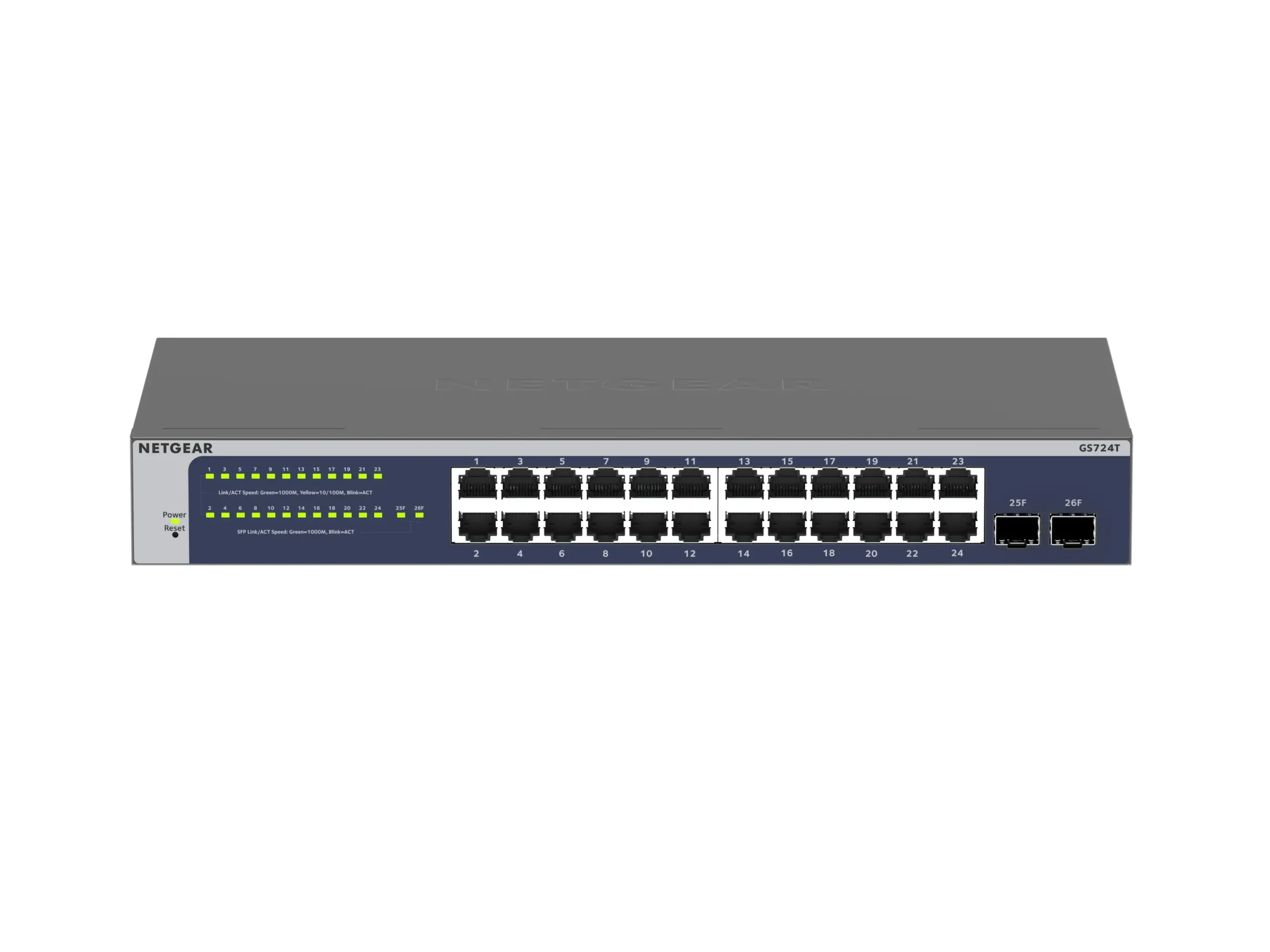

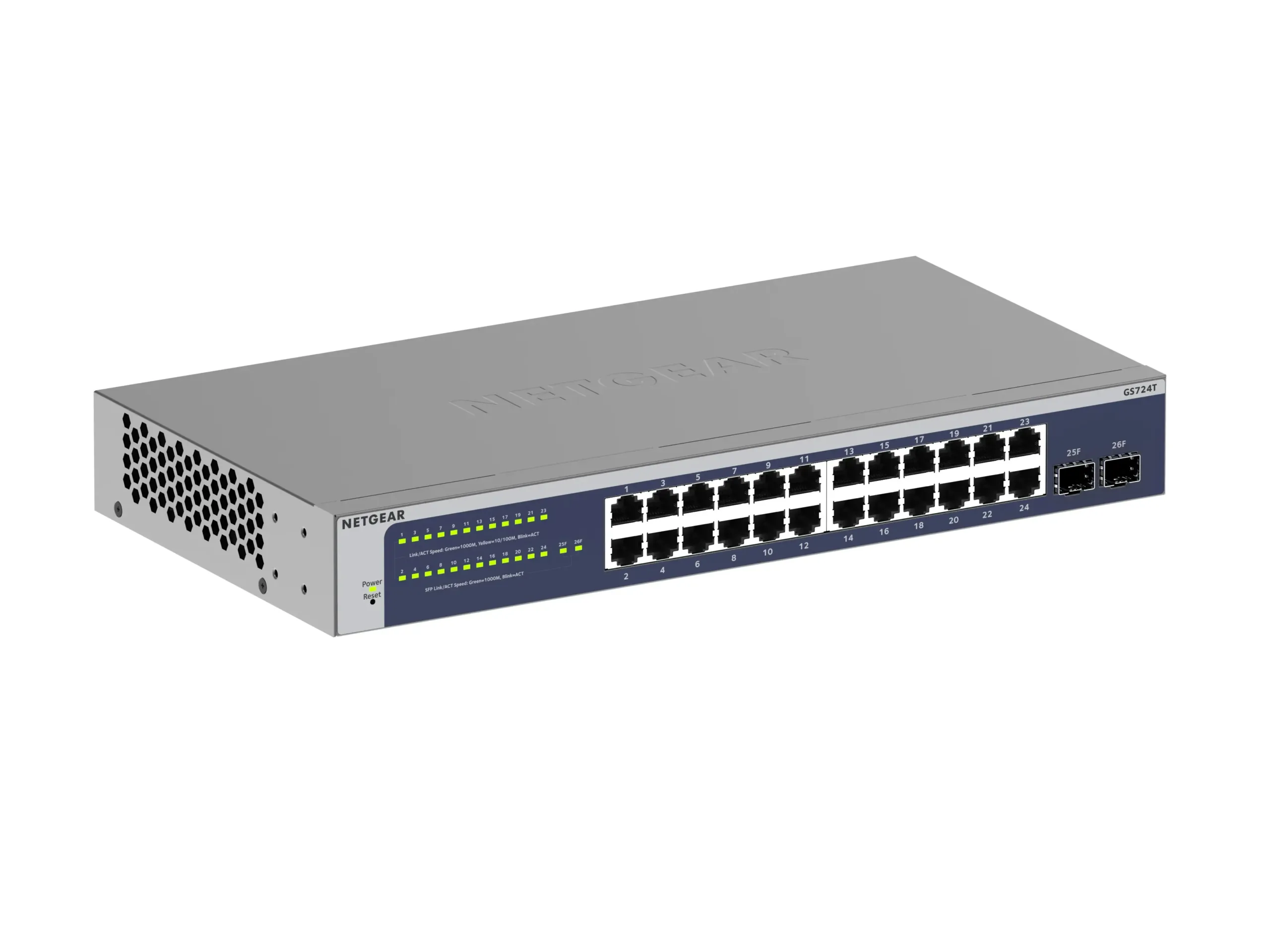

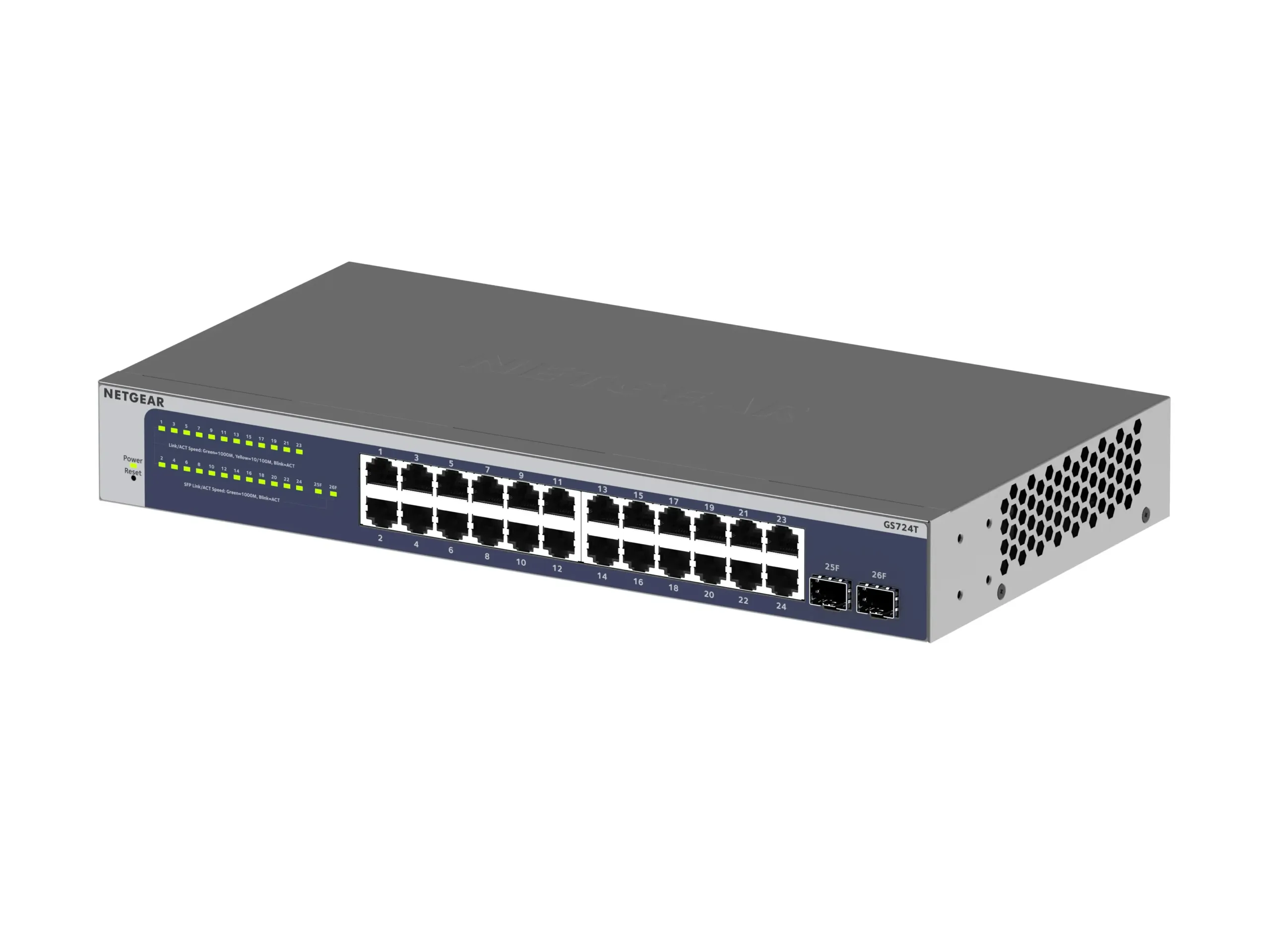

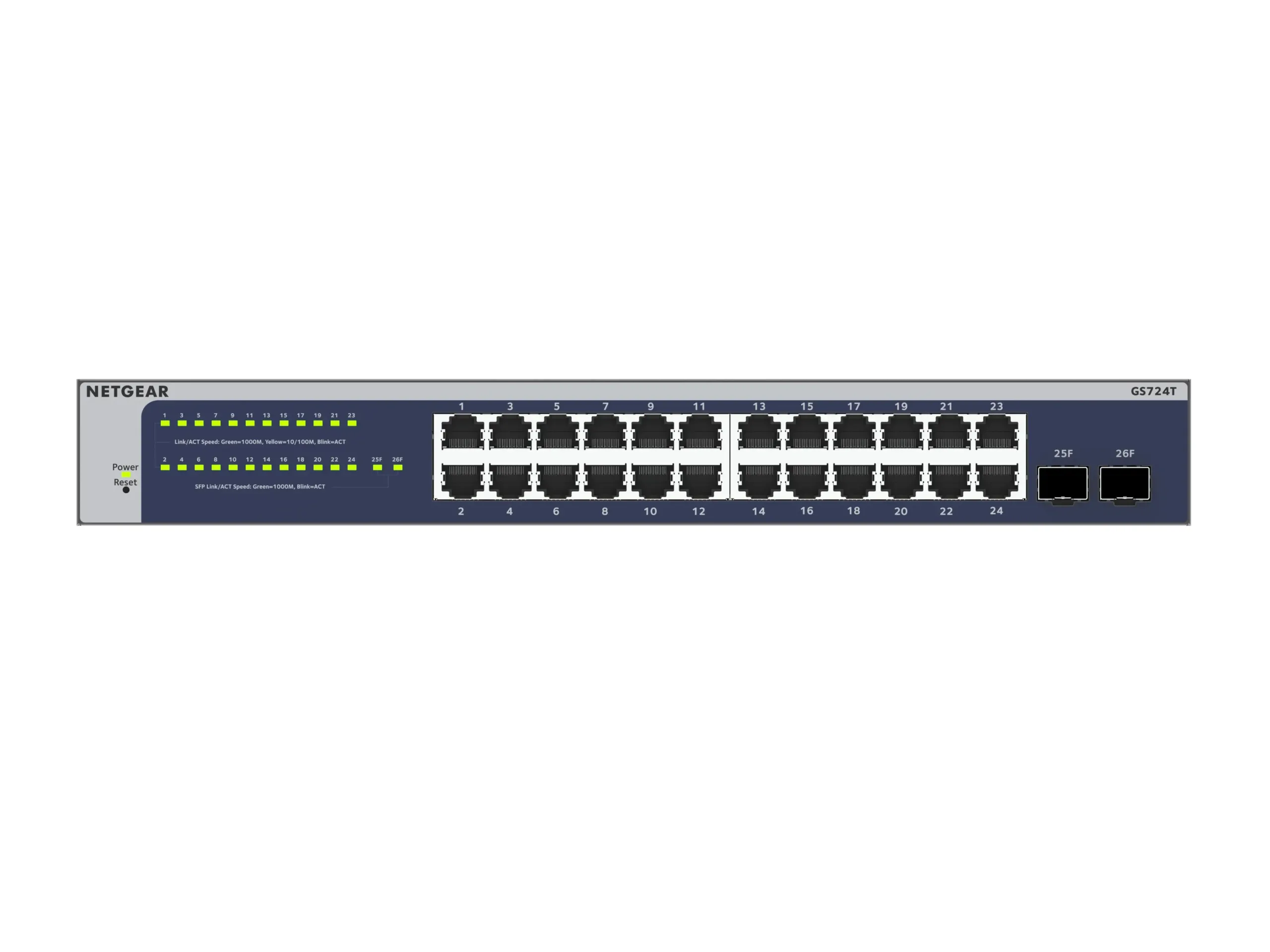

NETGEAR GS724Tv6 Gigabit Smart Switch
The GS724Tv6 brings a new generation of L2+/Layer 3 Lite intelligence to the network edge, with 24 Gigabit Ethernet ports and 2 dedicated Gigabit SFP fiber uplinks on a non-blocking 52Gbps switching fabric — 100% Gigabit throughput across every port. Auto Voice and Auto Video VLAN speed up VoIP and IP surveillance deployments, static and VLAN routing keep internal traffic efficient, and comprehensive IPv6 support protects the investment as networks migrate. The switch activates NETGEAR Insight cloud management directly from its web GUI for remote configuration, monitoring and zero-touch provisioning — all in a fanless, silent design suited to offices, libraries and classrooms.
Magnus Infotech is the official NETGEAR distributor in the UAE, supplying the GS724Tv6 (UAE ordering code GS724T-600PES) to resellers, system integrators and enterprise partners. See the NETGEAR brand page or total networking solutions.
Key Features
Non-Blocking Gigabit Architecture
100% Gigabit throughput across all 24 ports simultaneously.
Dedicated SFP Fiber Uplinks
2 dedicated SFP ports for fiber uplinks without sacrificing downlink ports.
NETGEAR Insight Cloud Management
Activate directly from the web GUI for remote, multi-site management.
Auto Voice & Auto Video VLAN
Fast, reliable deployment of VoIP and IP-based surveillance systems.
Fanless, Silent Design
0 dBA acoustic noise, ideal for offices, libraries and classrooms.
Energy Efficient Ethernet
IEEE 802.3az support reduces power consumption on active links.
Fully Cloud-Managed via NETGEAR Insight
Instantly activate NETGEAR Insight from the web GUI to manage the network from anywhere — no separate hardware controller required.
- Remote monitoring and management with performance dashboards, remote reboot and troubleshooting
- Single pane-of-glass view across multiple devices, networks and sites via the Insight app
- Zero-touch provisioning — additional Insight-managed devices auto-join and inherit network configuration
- Centralized policy configuration for VLANs, ACLs, QoS and LAGs across Insight switches and access points
- Dual firmware images and configuration files for transparent updates with minimal downtime
L2+/Layer 3 Lite & QoS
Advanced traffic management for converged voice, video and data networks.
- 802.1Q, protocol-based, MAC-based, Voice VLAN and Dynamic VLAN Assignment (256 VLANs)
- Static routing and VLAN routing for efficient internal traffic handling (32 static routes)
- IGMP (v1/v2/v3) and MLD (v1/v2) snooping, plus Multicast VLAN Registration (512 groups)
- QoS via 802.1p, DSCP, WRR and Strict Priority queuing, with port-based egress rate limiting
- STP/RSTP/MSTP, 802.3ad LACP (8 LAGs, up to 8 members each) and up to 100 shared ACLs
Robust Security Features
Layered protection to build a secure, converged network.
802.1X & RADIUS
Port-based authentication with RADIUS/TACACS+ admin access control and Guest VLAN.
DHCP Snooping
Only clients with specific IP/MAC addresses get network access.
Dynamic ARP Inspection
Prevents man-in-the-middle attacks via ARP cache poisoning.
Protected Ports
Blocks unicast/broadcast/multicast exchange between protected ports.
Storm & DoS Protection
Broadcast, unicast and multicast DoS attack protection.
SSL/HTTPS & TLS
TLS 1.2/1.3 for secure web-based management access.
Physical & Environmental Specifications
NETGEAR GS724Tv6 Technical Specifications
| Ports | 24× 10/100/1000 Mbps auto-sensing Gigabit ports + 2× dedicated 1000Mbps SFP fiber ports |
| Forwarding Mode | Store-and-forward |
| Forwarding Rate | 38.6 Mpps (64-byte packets) |
| Switching Fabric | 52Gbps, line-rate |
| Packet Buffer | 512KB |
| Priority Queues | 4, Weighted Round Robin (WRR) |
| MAC Address Table | 16K |
| Jumbo Frames | Up to 9K packet size |
| Acoustic Noise | Fanless (0 dBA) |
| MTBF | 1,999,946 hours (228 years) |
| VLAN Types | 802.1Q, protocol-based, MAC-based, Voice VLAN, Dynamic VLAN Assignment |
| VLANs | 256 |
| Spanning Tree | 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP) |
| Link Aggregation | 802.3ad LAGs / LACP (8 LAGs, up to 8 members each) |
| Broadcast Storm Control | Yes |
| Flow Control | 802.3x full duplex |
| Multicast Snooping | IGMP v1/v2/v3, MLD v1/v2, IGMP Snooping Queries, Multicast VLAN Registration |
| Multicast Groups | 512 |
| DHCP | DHCP Client, DHCP Snooping (8K bindings, 1024 static entries) |
| Routing | Static Routing, VLAN Routing, IP Source Guard (32 static routes, IPv4 interfaces) |
| Classification | Port-based, 802.1p, DSCP (IPv4/IPv6), TOS |
| Scheduling | WRR, Strict Priority Queue |
| Rate Limiting | Egress rate limiting |
| Auto-VoIP / Auto Video | SIP, H.323, SCCP protocols or OUI-byte based classification |
| Access Lists | L2 MAC, L3 IP and L4 Port ACLs |
| Authentication | 802.1X, MAC-based .1X, Guest VLAN, RADIUS-based VLAN assignment, RADIUS Accounting |
| Protection | Network Storm Protection, DoS/DDoS protection, Dynamic ARP Inspection |
| Access Control | 100 shared ACLs (MAC/IPv4/IPv6), MAC lockdown, Protected Ports |
| DHCP Security | DHCP Snooping |
| Cloud Management | NETGEAR Insight mobile app or Insight Cloud portal |
| Local Management | Web GUI (HTTP/HTTPS), SSL/TLS 1.2 & 1.3 |
| Protocols | SNMP v1/v2c/v3, RMON 1/2/3/9, 802.1ab LLDP, LLDP-MED, SNTP |
| Diagnostics | Port Mirroring (many-to-one), Cable Test Utility, Syslog (RFC 3164) |
| Firmware | Dual firmware image, dual configuration file, TFTP/HTTP file transfer |
| Dimensions | 328 × 169 × 43 mm (12.9 × 6.7 × 1.7 in) |
| Weight | 1.62 kg |
| Power Consumption | 13.5W (worst case, all ports used, line-rate traffic) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 90% max relative, non-condensing (operating); 95% max (storage) |
| Altitude | Up to 3,000m (10,000 ft) |
| EMC | CE mark, FCC Part 15 Class A, VCCI Class A, ICES-003 Class A, KC Class A, UKCA Class A, BSMI Class A, RCM Class A |
| Safety | CE, UKCA, CB, CSA, RCM, BSMI |
| Hardware Warranty | NETGEAR Enterprise Limited Lifetime Warranty* |
| Support Options | Sprint (24/5 phone/online, Advance RMA) or Overdrive (24/7, 2h SLA, Next Business Day RMA) |
| Premium Support SKUs | Sprint: SPR-GS724T-12/36/60 · Overdrive: DRV-GS724T-12/36/60 |
| Middle East SKU | GS724T-600PES |
| Other Regional SKUs | 600AUS (AU/NZ) · 600EUS (Europe/UK) · 600INS (India) · 600JPS (Japan) · 600KOS (South Korea) · 600NAS (NA/LatAm) · 600PRS (China) · 600TWS (Taiwan) · 600UKS (HK/Singapore) |
| Optional SFP Modules | AGM731F (1000Base-SX Multimode), AGM732F (1000Base-LX Single-mode), AGM734-10000S (1000Base-T Copper RJ45) |
| In the Box | Gigabit Smart Switch, power cord, rack mount kit, installation guide |
Applications and Use Cases
Built for converged networks handling voice, video and data on one platform.
Office & Enterprise LAN
Gigabit-to-desktop backbone for growing office networks.
Multi-Site Insight Deployments
Centralized policy and monitoring across multiple locations.
IP Surveillance Backbone
Auto Video VLAN simplifies camera network deployment.
VoIP Deployments
Auto Voice VLAN for fast, reliable IP telephony rollout.
Libraries, Classrooms & Quiet Offices
Fanless, silent operation where noise matters.
Fiber-Backed Distribution Networks
Dedicated SFP uplinks for redundant fiber connections.
NETGEAR Distributor in the UAE
Magnus Infotech Trading LLC is the official NETGEAR distributor in the UAE, supplying NETGEAR's switching and networking range — including the GS724Tv6 — to resellers, system integrators and enterprise partners, backed by pre-sales consultancy, warehousing, logistics and technical support.
- Pre-sales consultancy & solution design
- Warehousing across the UAE
- Logistics & delivery support
- Ongoing technical support
NETGEAR Switches Supplied Across the UAE
NETGEAR solutions are supplied across the UAE through Magnus Infotech, serving reseller and integrator partners in the following Emirates.
