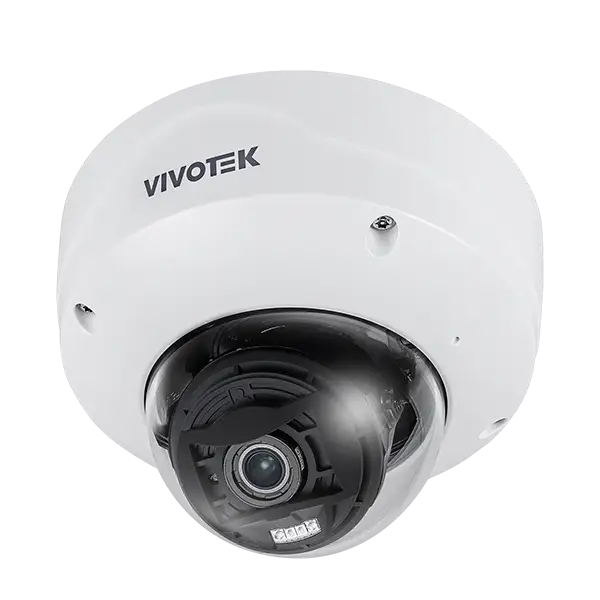

VIVOTEK FD9187-HT-V3 — 5MP Indoor Dome AI Camera
A 2.7–13.5mm motorized vari-focal dome camera built for indoor surveillance, pairing WDR Pro imaging with 50m Smart IR III night vision and on-camera AI video analytics. Supplied across the UAE by Magnus Infotech, authorized VIVOTEK distributor.
Product Image
VIVOTEK FD9187-HT-V3 Indoor Dome AI Camera
The FD9187-HT-V3 is a 5MP indoor dome camera built around a 2.7–13.5mm motorized vari-focal lens with remote focus, giving installers on-site flexibility to frame the exact field of view a room or corridor needs. WDR Pro balances strong backlight and shadow in the same frame, while built-in IR illuminators reach up to 50 metres with Smart IR III automatically adjusting intensity to avoid overexposing close objects. A built-in hardware deep learning accelerator runs on-camera Smart Motion Detection and Smart VCA, and Trend Micro IoT Security adds continuous cyberattack monitoring on top of signed firmware and secure boot.
Magnus Infotech is an authorized VIVOTEK distributor in the UAE, supplying the FD9187-HT-V3 to resellers, system integrators and enterprise partners. See the VIVOTEK brand page or security & surveillance solutions.
Key Features
WDR Pro Imaging
Balances backlight and shadow in the same frame for clearer indoor footage.
Smart IR III — up to 50M
Built-in IR illuminators with automatic intensity adjustment by zoom position.
AI Smart Motion Detection & Smart VCA
On-camera deep learning for people/vehicle detection and intrusion alerts.
Cyber Protection via Trend Micro IoT Security
Monitors for brute-force attempts, cyberattacks and quarantine events.
Signed Firmware & Secure Boot
Verifies firmware integrity at every boot to help block unauthorized firmware.
48× ePTZ Digital Zoom
Pan ±175°, tilt 80° and rotate ±175° within the recorded frame.
Reliable Vision in Mixed Indoor Light
Indoor scenes rarely have even lighting — glass partitions, doorways and overhead lighting all create contrast a fixed camera struggles with. The FD9187-HT-V3 pairs WDR Pro with Smart IR III so image quality holds up from daylight through to low light, without a separate lighting setup.
- WDR Pro preserves detail in both bright and shadowed areas of the same frame
- Built-in IR illuminators effective to 50 metres
- Smart IR III automatically balances IR intensity by lens zoom position, reducing overexposed close-ups
- Shutter range of 1/5 sec. to 1/32,000 sec. covers both dim rooms and bright daylight scenes
AI-Powered Video Analytics
A built-in hardware deep learning accelerator runs analytics on the camera itself, without needing a separate analytics server.
- People and vehicle detection (4- and 2-wheeled), human/vehicle Bestshot and Path Extraction
- Attribute extraction — people (gender, clothing colour, bag, hat), vehicle (type, colour), face Bestshot, Re-Search Extraction
- Smart VCA — intrusion, loitering, line crossing, face detection, unattended/missing object, crowd detection
- Licensed apps available — running detection, parking violation detection, restricted zone detection
Built-In Cybersecurity Protection
Layered security controls on top of standard network hardening.
Trend Micro IoT Security
Monitoring for brute-force, cyberattack and quarantine events.
Secure Boot & Signed Firmware
Verifies firmware integrity at startup.
Account Controls
Access list, account block, audit log, session timeout, configurable password strength.
Authentication & Transport Security
Digest authentication, HTTPS, IEEE 802.1X, CSRF protection.
ONVIF Compliant
Standards-based integration with compatible NVR/VMS platforms.
User Account Management
Full user account management and user access logging.
Working Environment
As an indoor dome camera, the FD9187-HT-V3 is rated for standard indoor operating conditions rather than outdoor ingress protection.
VIVOTEK FD9187-HT-V3 Technical Specifications
| Image Sensor | CMOS, 5MP |
| Max. Resolution | 2560×1920 |
| Lens | Motorized vari-focal, remote focus, 2.7–13.5mm |
| Shutter | 1/5 sec to 1/32,000 sec |
| WDR | WDR Pro |
| IR Illuminators | Built-in, up to 50m, Smart IR III |
| Mounting Adjustment | Pan ±175° / Tilt 80° / Rotation ±175° |
| ePTZ | 48× digital zoom (4× IE plug-in, 12× built-in) |
| Image Enhancement | RealSight Engine — Smart IR III, deblur, WDR, white balance, exposure control |
| Compute | SoC with built-in hardware deep learning accelerator |
| Object Detection | People, vehicle (4/2-wheeled), Bestshot, Path Extraction |
| Attribute Extraction | People, vehicle, face Bestshot, Re-Search Extraction |
| Smart VCA | Intrusion, loitering, line crossing, face detection, unattended/missing object, crowd detection |
| Licensed Apps | Running, parking violation, restricted zone detection |
| Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in mic; external mic input & line output |
| Effective Range | 5 metres |
| Interface | RJ-45, 10/100 Mbps PoE |
| ONVIF | Yes |
| Protocols | 802.1X, HTTP/HTTPS, TLS 1.2/1.3, RTSP/RTP/RTCP, SNMP, UPnP and standard IP networking protocols |
| Security | Secure Boot, Signed Firmware, Access List, Account Block, Audit Log, Trend Micro IoT Security |
| Local Storage | MicroSD/SDHC/SDXC, up to 1TB supported |
| Network Storage | Seamless recording to NAS |
| Power Input | PoE IEEE 802.3af Class 0 (redundancy), DC 12V, AC 24V* |
| Power Consumption | PoE max 12.95W/10.05W · DC12V max 14.4W/11.5W · AC24V max 12W/9.1W (IR on/off) |
| Default I/O | RJ-45, audio in/out, DC12V input, digital input×1, digital output×1, Micro USB |
| Optional I/O (AO-011) | Digital input×1, digital output×1, AC24V power input |
| Dimensions | ø 173.6 × 122.6 mm |
| Weight | 1.10 kg |
| Working Temperature | -10°C to 50°C (IR on/off) |
| Humidity | 98% RH (non-condensing) |
Applications and Use Cases
An indoor 5MP AI dome camera suited to environments that need clear detail, dependable low-light performance and analytics-driven alerting.
Corporate Offices
Reliable indoor coverage for entrances, floors and meeting areas.
Retail Stores
Clear detail near checkouts, aisles and store entrances.
Education
Corridor and campus building monitoring.
Hospitality
Lobby, corridor and back-of-house coverage.
Warehouses
Indoor storage and dispatch area monitoring.
Corridors & Lobbies
Wide vari-focal framing for entry and transit points.
