VIVOTEK FD9399-EHV — 8MP AI Dome Camera for UAE Deployments
An 8MP outdoor dome camera built on VIVOTEK's deep-learning platform, combining WDR Pro imaging, 40 metre smart IR illumination and an IK10 vandal-resistant, IP66/NEMA-rated housing. Supplied across the UAE by Magnus Infotech, authorized VIVOTEK distributor, for resellers, system integrators and enterprise projects.
Product Image

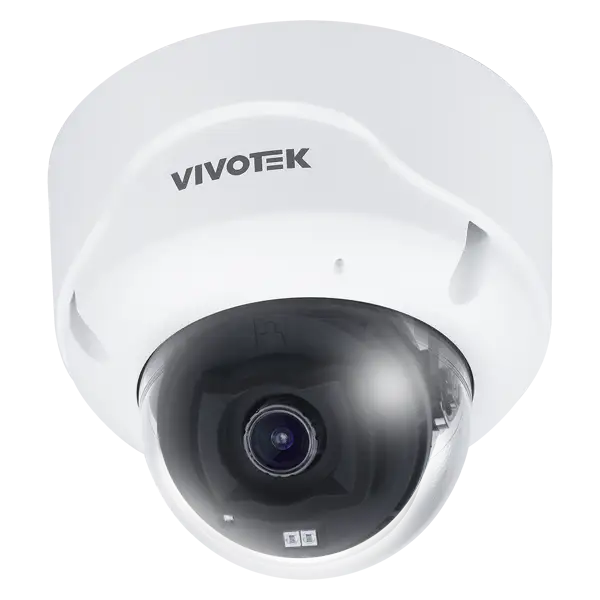

VIVOTEK FD9399-EHV 8MP Outdoor Dome Camera
The FD9399-EHV shares the same 8MP sensor, lens and AI processing platform as VIVOTEK's outdoor bullet range, packaged into a compact dome housing suited to ceiling and wall mounting where a lower-profile camera is preferred. It carries an IK10 vandal-resistant rating, IP66 protection and a NEMA 250 Type 4X rating, with 350° pan, 80° tilt and 350° rotation adjustment for precise aiming once installed. On-board deep-learning analytics run people and vehicle detection directly at the edge, without depending on a separate analytics server.
Magnus Infotech supplies the FD9399-EHV to resellers, system integrators and enterprise technology partners across the UAE, backed by pre-sales support, logistics and after-sales technical assistance. See the full range on the VIVOTEK brand page or explore related security & surveillance solutions.
Key Features of the VIVOTEK FD9399-EHV
8MP Ultra-HD Imaging
3840 × 2160 resolution at up to 30 fps, captured through a 1/1.8" progressive CMOS sensor for sharp, detailed footage.
WDR Pro, 120 dB
Balances bright and dark areas in the same scene, preserving detail in high-contrast lighting typical of entrances and lobbies.
Smart IR up to 40 m
Built-in IR illuminators with Smart IR III adjust intensity automatically to avoid overexposure on nearby objects at night.
Deep Learning AI Analytics
On-chip hardware accelerator runs people and vehicle detection, Bestshot capture and Smart VCA rules without external servers.
350° Pan / 80° Tilt / 350° Rotation
Wide mounting adjustment range makes it straightforward to fine-tune the exact aim after the dome is fixed in place.
IK10, IP66 & NEMA 250 Type 4X
Vandal-resistant housing sealed against dust and water, rated for outdoor and harsh-environment installation.
AI-Powered Video Analytics
The FD9399-EHV runs on a multimedia SoC with a built-in hardware deep learning accelerator, allowing analytics to process on the camera itself rather than depending entirely on a central server. This keeps detection responsive even on large multi-camera deployments.
- People and vehicle object detection (4-wheeled and 2-wheeled), plus Human/Vehicle Bestshot and Path Extraction
- Attribute extraction — gender, clothing colour, bag, hat for people; type and colour for vehicles; plus Human Face Bestshot and Re-Search Extraction
- Smart VCA included — intrusion, loitering, line crossing, face, unattended object, missing object and crowd detection
- Licensed applications available — running detection, parking violation detection, restricted zone detection
Where this helps
Because detection rules run on-camera, integrators can build alerting for unauthorised loitering, restricted-zone entry or crowd build-up without adding a separate analytics server to the project.
Streaming efficiency
H.265 compression with Smart Stream III reduces bitrate without a fixed loss in image quality, which helps control bandwidth and storage consumption across multi-camera NVR setups — a common requirement for UAE integrators managing large storage arrays.
Image and Video Performance
Low-light performance is rated down to 0.015 lux in colour and below 0.005 lux in black and white, dropping to 0 lux with IR illumination active — useful for sites with limited ambient lighting after dark.
- Detail retained at both ends of the exposure range, so footage stays usable when a scene mixes strong daylight with shaded areas
- Built-in EIS (electronic image stabilisation) using a gyro sensor to reduce blur from vibration, useful on ceiling or wall-mounted installations
- Removable IR-cut filter for accurate day/night colour transition
- 54 dB signal-to-noise ratio for cleaner footage in low light
Built-In Cybersecurity Protection
As network-connected devices, IP cameras are a common entry point for attacks if left unprotected. The FD9399-EHV includes device-level security controls designed to reduce that exposure.
Trend Micro IoT Security
Monitors for brute-force attack, cyberattack and quarantine events at the device level.
HTTPS & IEEE 802.1X
Encrypted management access and port-based network access control for secure connections.
Secure Boot & Signed Firmware
Verifies firmware integrity at startup to help prevent tampered or unauthorised firmware from running.
Built-In TPM
FIPS 140-2 Level 2 certified Trusted Platform Module for hardware-based key protection.
Access & User Logging
Access list controls, digest authentication, CSRF protection and a full user access log.
ONVIF Profile G / S / T / M
Standards-based compliance for interoperability with third-party VMS platforms.
Built for UAE Outdoor Conditions
Outdoor and semi-exposed installations in the UAE face intense heat, dust and occasional heavy rain, alongside a higher risk of tampering in publicly accessible areas. The FD9399-EHV's vandal-resistant dome housing and wide operating temperature range are designed for long-term reliability in these conditions.
- IP66 rated against dust ingress and water jets
- IK10 impact resistance rating, well suited to publicly accessible areas prone to tampering
- NEMA 250 Type 4X rated for resistance to corrosion and wind-driven dust or rain
- Working temperature range of -35°C to 60°C (IR off) / -35°C to 50°C (IR on)
Housing at a glance
VIVOTEK FD9399-EHV Technical Specifications
| Image Sensor | 1/1.8" Progressive CMOS |
| Max. Resolution | 3840 × 2160 (8MP) |
| Lens | Fixed-focal, f = 4.2 mm, F1.6 |
| Field of View | 110.74° (H) / 59.1° (V) / 131.0° (D) |
| Shutter | 1/5 sec to 1/32,000 sec |
| WDR | WDR Pro, 120 dB dynamic range |
| Day/Night | Yes, removable IR-cut filter |
| IR Illuminators | Built-in, up to 40 m with Smart IR (4× IR LED) |
| Min. Illumination | 0.015 lux (colour) / <0.005 lux (B/W) / 0 lux (IR on) |
| Mounting Adjustment | Pan 350° / Tilt 80° / Rotation 350° |
| Pan / Tilt / Zoom | ePTZ: 48× digital zoom (4× IE plug-in, 12× built-in) |
| Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | 30 fps @ 3840×2160 (8MP) |
| Max. Streams | 3 video streams (up to 8 configurable profiles) |
| S/N Ratio | 54 dB |
| Streaming | Smart Stream III, adjustable resolution/quality/bitrate |
| Storage | MicroSD/SDHC/SDXC up to 1TB + NAS recording |
| Compute | SoC with built-in hardware deep learning accelerator |
| Object Detection | People, vehicle (4-wheeled, 2-wheeled), Human/Vehicle Bestshot, Path Extraction |
| Attribute Extraction | People (gender, clothing colour, bag, hat); vehicle (type, colour); Human Face Bestshot; Re-Search Extraction |
| Smart VCA (included) | Five-window motion detection, people/vehicle detection, time filter, intrusion, loitering, line crossing, face detection, unattended object, missing object, crowd detection |
| Licensed Apps | Running detection, parking violation detection, restricted zone detection |
| Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in mic; external mic input & line output available |
| Effective Range | 5 metres |
| Interface | 10/100 Base-TX Ethernet (RJ-45) |
| Concurrent Users | Live viewing for up to 10 clients |
| Security | HTTPS, IEEE 802.1X, Secure Boot, Signed Firmware, TPM (FIPS 140-2 Level 2) |
| ONVIF | Profile G, S, T, M |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4 W / 9.6 W (IR on/off) |
| Dimensions | Ø 134 × 116 mm |
| Weight | 960 g |
| Protection Rating | IP66, IK10, NEMA 250 Type 4X |
| Operating Temperature | -35°C to 60°C (IR off) / -35°C to 50°C (IR on) |
Applications and Use Cases
The FD9399-EHV's compact, low-profile dome housing and vandal-resistant rating suit sites where discreet, tamper-resistant coverage matters as much as image quality.
Retail Interiors
Ceiling-mounted coverage of aisles, checkout areas and store entrances.
Hospitality & Hotels
Lobbies, corridors and guest-facing common areas needing a low-profile camera.
Healthcare Facilities
Corridors and public areas where a discreet housing is preferred.
Education Campuses
Indoor hallways and communal spaces with crowd and motion detection.
Transit & Public Transport
Vandal-resistant coverage suited to stations, platforms and waiting areas.
Elevators & Stairwells
Compact dome housing suited to confined, high-traffic mounting spaces.
Covered Parking Structures
Ceiling-mounted vehicle and pedestrian coverage across parking levels.
Corporate Offices & Lobbies
Reception areas and building entrances where aesthetics matter alongside security.
VIVOTEK Authorized Distributor in the UAE
Magnus Infotech Trading LLC is an authorized VIVOTEK distributor in the UAE, supplying the full range of VIVOTEK IP surveillance products — including the FD9399-EHV — to resellers, system integrators and enterprise partners, backed by pre-sales consultancy, warehousing, logistics and technical support.
- Pre-sales consultancy & solution design
- Warehousing across the UAE
- Logistics & delivery support
- Vendor training programmes
- Ongoing technical support
VIVOTEK Cameras Supplied Across the UAE
VIVOTEK solutions are supplied across the UAE through Magnus Infotech, serving reseller and integrator partners in the following Emirates.
Frequently Asked Questions
What is the VIVOTEK FD9399-EHV used for?
Does the VIVOTEK FD9399-EHV support AI-based detection?
What is the maximum resolution of the FD9399-EHV?
Is the VIVOTEK FD9399-EHV suitable for outdoor installation?
Does the VIVOTEK FD9399-EHV support two-way audio?
Does Magnus Infotech supply VIVOTEK cameras across the UAE?
How can I get pricing for the VIVOTEK FD9399-EHV in the UAE?
Download the VIVOTEK FD9399-EHV Datasheet
Product Datasheet
Full specification sheet from VIVOTEK's official download centre.
Download DatasheetTechnical Reference
Additional official VIVOTEK specification reference for the FD9399-EHV.
View ReferenceRequest a Quote for the VIVOTEK FD9399-EHV
Send your requirements to the Magnus Infotech sales team for pricing and project support across the UAE.
Or email us directly at [email protected]
