VIVOTEK MA9312-EHTV — 4K Dual-Directional Panoramic AI Camera
Two independently aimable 4K (8MP) lenses in one housing, each with 350° pan, 80° tilt and motorized vari-focal zoom, cover two directions — or a wide combined scene — from a single mounting point. Supplied across the UAE by Magnus Infotech, authorized VIVOTEK distributor.
Product Images

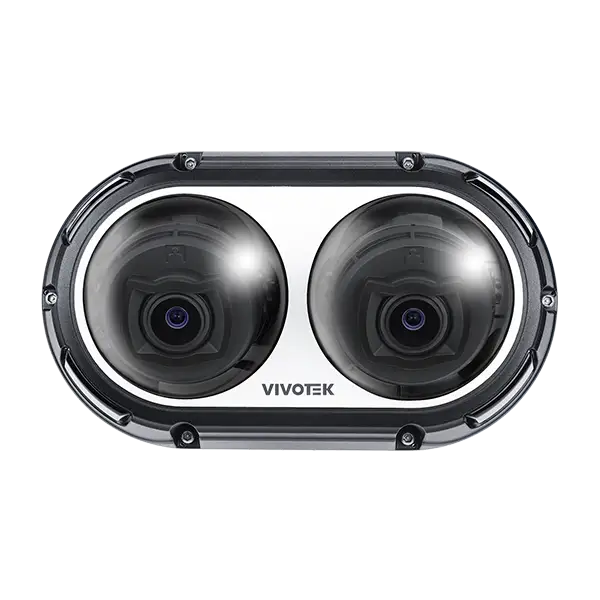

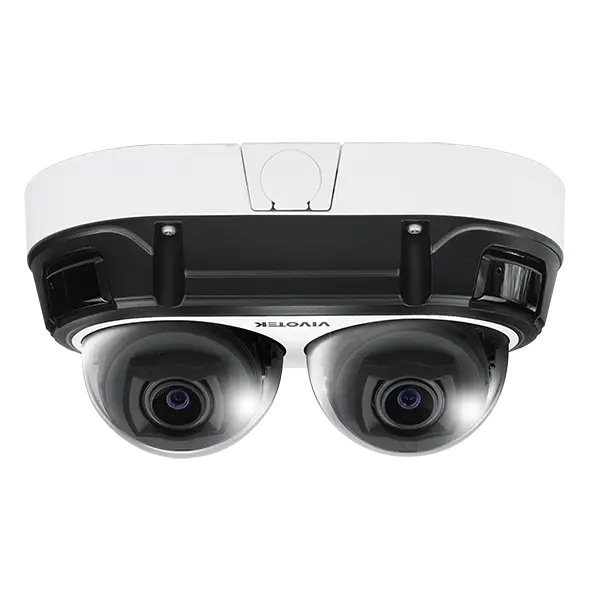

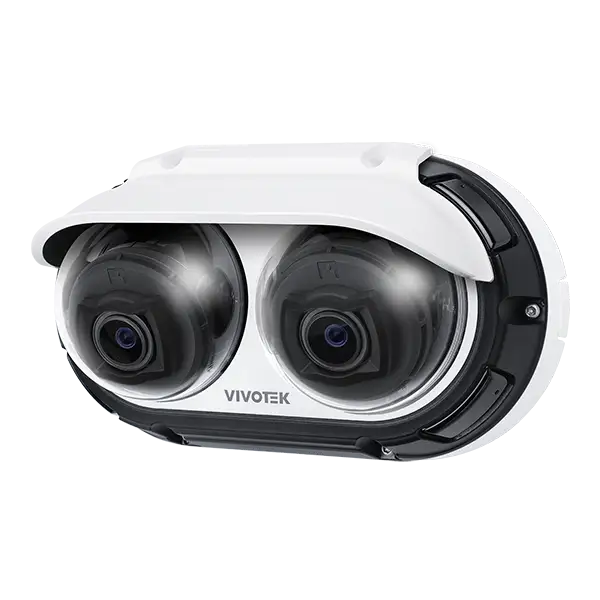

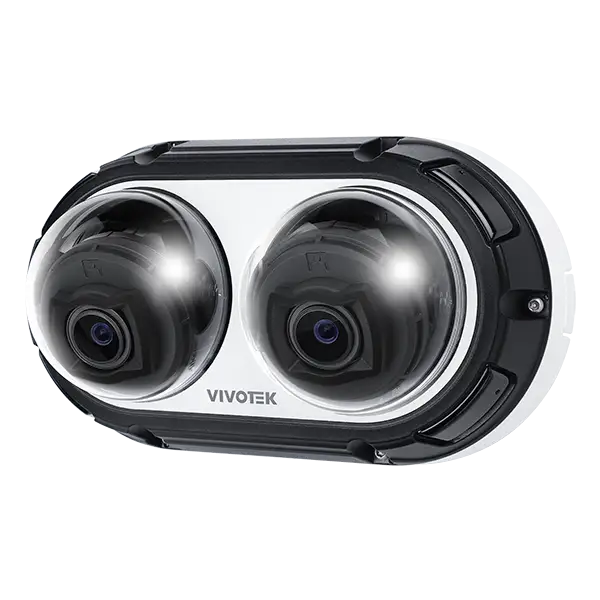

VIVOTEK MA9312-EHTV Dual-Directional Panoramic AI Camera
The MA9312-EHTV packs two independent 4K (8MP) camera heads into one dual-directional housing, each with its own motorized vari-focal lens (4.3~9.8mm), 350° pan and 80° tilt — letting a single camera cover two directions, or a wide combined scene, from one mounting point. A deep-learning accelerator runs on-camera people and vehicle detection, attribute extraction and Smart VCA across both channels, over Gigabit PoE+ (802.3at Class 4). The housing is rated IP66/IP67, IK10 and NEMA 250 Type 4X, with an operating range down to -40°C.
Magnus Infotech is an authorized VIVOTEK distributor in the UAE, supplying the MA9312-EHTV to resellers, system integrators and enterprise partners. See the VIVOTEK brand page or security & surveillance solutions.
Key Features
Dual 4K (8MP) Imaging
Two independent 3840×2160 channels, each up to 30 fps.
Independently Aimable Lenses
350° pan, 80° tilt and 350° rotation per lens for flexible dual-angle coverage.
On-Camera AI Analytics
People/vehicle detection, Bestshot, attribute extraction and Smart VCA on both channels.
WDR Pro, 120 dB
Detail preserved across high-contrast outdoor scenes.
IP66/IP67, IK10 & NEMA
Vandal- and weather-resistant housing rated to -40°C.
PoE+ Gigabit
802.3at Class 4 power over a Gigabit Ethernet connection.
Two Cameras, One Mounting Point
Because each lens pans, tilts and rotates independently, the MA9312-EHTV can be aimed to cover two separate areas — such as both directions along a corridor, or two sides of an intersection — from a single housing and cable run, cutting down the number of mounting points a project needs.
- 350° pan, 80° tilt and 350° rotation per lens, aimed independently
- Motorized vari-focal lens per channel (4.3~9.8mm) with remote focus
- Up to 3 streams per channel — 14 profiles total — for flexible recording and live-view setups
- Per-lens detection range up to ~197.6m at the tele end, per VIVOTEK's published DORI figures
AI-Powered Video Analytics
On-camera deep learning runs across both channels, without depending on a separate analytics server.
- People and vehicle detection (4- and 2-wheeled), Bestshot and Path Extraction
- Attribute extraction — people (gender, clothing colour, bag, hat), vehicle (type, colour), face Bestshot, Re-Search Extraction
- Smart VCA — intrusion, loitering, line crossing, face, unattended/missing object, crowd detection
- Licensed apps available — running detection, parking violation detection, restricted zone detection
Built-In Cybersecurity Protection
The MA9312-EHTV carries VIVOTEK's fullest security feature set — notably more extensive than VIVOTEK's single-lens models.
Trend Micro IoT Security
3-year free trial, monitoring for brute-force, cyberattack and quarantine events.
Secure Boot & Signed Firmware
Verifies firmware integrity at startup.
Built-In TPM
FIPS 140-2 Level 2 certified Trusted Platform Module.
Account Controls
Account block, audit log, session timeout, configurable password strength.
Certificate Management
Certificate management with CSRF and digest authentication.
ONVIF Profile G/S/T/M
Standards-based compliance for third-party VMS platforms.
Built for Extreme Conditions
Rated IP66/IP67 for dust and water ingress, IK10 for impact resistance and NEMA 250 Type 4X for corrosion resistance, with an operating range down to -40°C — among the wider cold-weather ratings in VIVOTEK's outdoor range.
VIVOTEK MA9312-EHTV Technical Specifications
| Image Sensor | 1/1.8" Progressive CMOS (×2) |
| Max. Resolution | 3840×2160 (4K/8MP) × 2 channels |
| Lens | Motorized vari-focal, remote focus, f = 4.3~9.8mm, F1.6~F2.6, P-iris |
| Field of View | 110.4°~45.1° (H) / 57.9°~25.4° (V) / 133.9°~51.8° (D) |
| Shutter | 1/30 sec to 1/32,000 sec |
| WDR | WDR Pro, 120 dB dynamic range |
| IR Illuminators | Built-in, up to 20m with Smart IR (4× IR LED) |
| Min. Illumination | 0.02 lux (colour) / 0.005 lux (B/W) / 0 lux (IR on) |
| Mounting Adjustment | 350° pan / 80° tilt / 350° rotation, each lens |
| ePTZ | 48× digital zoom (4× IE plug-in, 12× built-in) |
| DORI (Wide/Tele) | Detection 88.1m/197.6m · Recognition 17.5m/39.0m · Identification 8.7m/19.5m |
| Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | H.265/H.264: 30fps @ (3840×2160)×2 · MJPEG: 15fps |
| Max. Streams | 3 per channel (up to 14 profiles total) |
| S/N Ratio | 70 dB |
| Streaming | Smart Stream III |
| Storage | MicroSD/SDHC/SDXC up to 1TB + NAS recording |
| Compute | SoC with built-in hardware deep learning accelerator |
| Object Detection | People, vehicle (4/2-wheeled), Bestshot, Path Extraction |
| Attribute Extraction | People, vehicle, face Bestshot, Re-Search Extraction |
| Smart VCA | Intrusion, loitering, line crossing, face, unattended/missing object, crowd detection |
| Licensed Apps | Running, parking violation, restricted zone detection |
| Trend Micro Trial | 3-year free trial |
| Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in mic; external mic input & line output |
| Interface | 10/100/1000 Gigabit Ethernet (RJ-45) |
| Concurrent Users | Live viewing for up to 20 clients |
| Security | Secure Boot, Signed Firmware, TPM (FIPS 140-2 L2), Account Block, Audit Log, Certificate Management |
| ONVIF | Profile G, S, T, M |
| Power Input | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 25.5W / 19.8W (IR on/off) |
| Dimensions | 230 × 135 × 112 mm |
| Weight | 1.55 kg |
| Protection Rating | IP66, IP67, IK10, NEMA 250 Type 4X |
| Operating Temperature | -40°C to 55°C (IR off) / -40°C to 50°C (IR on) |
Applications and Use Cases
Dual independent lenses make this camera well suited to sites needing two-direction or wide combined coverage from one point.
Intersections & Roadways
Cover two directions from a single pole-mount point.
Building Corners & Corridors
Two independently aimed angles at junctions.
Large Parking Structures
Wide combined panoramic coverage of parking areas.
Critical Infrastructure Perimeters
Extended tele-range detection with rugged, NEMA-rated housing.
Ports, Yards & Industrial Sites
-40°C rating suits harsh outdoor environments.
Campus & Public Junctions
Dual-angle coverage at path and road intersections.
VIVOTEK Authorized Distributor in the UAE
Magnus Infotech Trading LLC is an authorized VIVOTEK distributor in the UAE, supplying the full range of VIVOTEK IP surveillance products — including the MA9312-EHTV — to resellers, system integrators and enterprise partners, backed by pre-sales consultancy, warehousing, logistics and technical support.
- Pre-sales consultancy & solution design
- Warehousing across the UAE
- Logistics & delivery support
- Ongoing technical support
VIVOTEK Cameras Supplied Across the UAE
VIVOTEK solutions are supplied across the UAE through Magnus Infotech, serving reseller and integrator partners in the following Emirates.
Frequently Asked Questions
What is the VIVOTEK MA9312-EHTV?
How is it different from a single-lens VIVOTEK camera?
Does the MA9312-EHTV support AI-based detection?
Is it suitable for harsh outdoor environments?
What network connection does it need?
Does Magnus Infotech supply VIVOTEK cameras across the UAE?
How can I get pricing for the VIVOTEK MA9312-EHTV in the UAE?
Download the VIVOTEK MA9312-EHTV Datasheet
Product Datasheet
Full specification sheet from VIVOTEK's official download centre.
Download DatasheetRequest a Quote for the VIVOTEK MA9312-EHTV
Send your requirements to the Magnus Infotech sales team for pricing and project support across the UAE.
