VIVOTEK AW-IHB-1040 — 10-Port Lite Managed PoE Switch
An industrial lite managed switch with 2x GbE 802.3bt ports (up to 90W), 6x GbE 802.3at ports (up to 30W) and 2x GbE SFP uplinks, a 300W PoE power budget, built-in temperature/humidity detection and a -40°C to 75°C operating range — built to power PoE cameras and devices in demanding outdoor installations. Supplied across the UAE by Magnus Infotech, VIVOTEK distributor.
Product Image

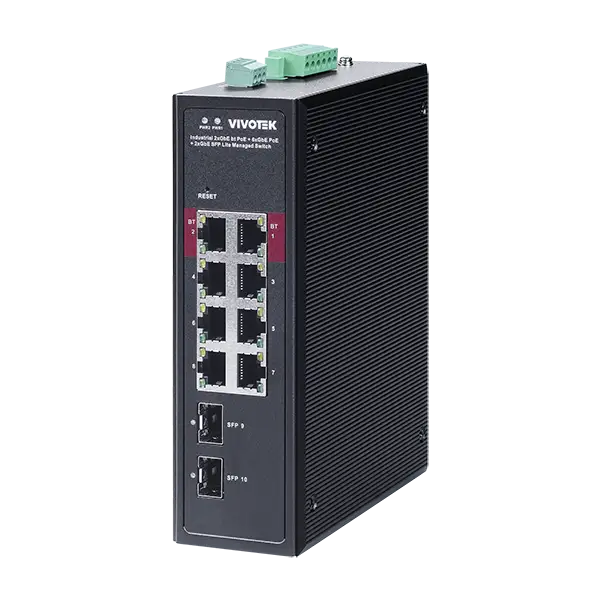

VIVOTEK AW-IHB-1040 Industrial PoE Switch
The AW-IHB-1040 is a lite managed industrial switch built to power and network PoE devices at the edge — 8 Gigabit PoE ports (2x 802.3bt up to 90W, 6x 802.3at up to 30W) plus 2x Gigabit SFP uplinks, with a 300W total PoE power budget. Layer 2 management covers VLAN, Spanning Tree, LACP link aggregation and QoS, while PoE-specific tools — On/Off control, Alive Checking and Extended Mode up to 250m — help keep remote PoE devices like cameras online without a site visit. A built-in temperature and humidity sensor and -40°C to 75°C operating range suit unconditioned outdoor cabinets across the UAE's climate extremes.
Magnus Infotech is the VIVOTEK distributor in the UAE, supplying the AW-IHB-1040 to resellers, system integrators and enterprise partners. It pairs naturally with VIVOTEK's outdoor camera range, such as the FD9187-HT-V3. See the VIVOTEK brand page or security & surveillance solutions.
Key Features
Port-Based & Tag-Based VLAN
802.1Q VLAN with up to 4096 VLAN IDs, plus port-based VLAN.
Spanning Tree Protocol
STP (802.1D) and RSTP (802.1w) for loop-free network topology.
Link Aggregation (LACP)
IEEE 802.3ad static aggregation for combined-bandwidth uplinks.
Temperature & Humidity Detection
Built-in sensor included as standard for environmental monitoring.
802.3bt PoE++ up to 90W
Ports 1-2 deliver up to 90W each for high-power PoE devices.
Extended PoE Mode
Reaches up to 250m at reduced (10Mbps) link speed for long cable runs.
Built for Outdoor & Industrial PoE Deployments
Remote and outdoor PoE installations — camera poles, perimeter cabinets, unmanned sites — need hardware that copes with extreme weather and stays recoverable without a truck roll. The AW-IHB-1040 is built around exactly that.
- Built-in temperature and humidity sensor (included accessory) for environmental monitoring at the install site
- Operates from -40°C to 75°C, suited to unconditioned outdoor cabinets in extreme heat and cold
- 6kV surge protection guards against lightning-induced transients on long outdoor cable runs
- PoE Alive Checking automatically power-cycles an unresponsive PoE device without a site visit
- Redundant power input support keeps the switch running if one supply fails
PoE & Power Configuration
8 of the 10 ports deliver PoE, split across two power tiers to match device needs.
- Ports 1-2: IEEE 802.3bt, up to 90W per port
- Ports 3-8: IEEE 802.3at, up to 30W per port
- Total PoE power budget: 300W (802.3af/at/bt standards supported)
- PoE On/Off control and PoE Alive Checking for non-stop PoE device recovery
- Power input: 48-52VDC supports bt up to 60W; 52-56VDC supports bt up to 90W, with redundant power backup
L2 Management & QoS
Layer 2 management features for segmenting, prioritizing and monitoring traffic.
VLAN
802.1Q tag-based VLAN (4096 IDs) and port-based VLAN.
Spanning Tree
IEEE 802.1D (STP) and 802.1w (RSTP).
Trunking
IEEE 802.3ad LACP static aggregation.
QoS
8 hardware queues, port-based & 802.1p classification, WRR scheduling, DSCP & CoS.
Rate Limiting
Ingress and egress rate limiting, per port.
Port Mirroring
Traffic monitoring for diagnostics, plus firmware upgrade support.
Mechanical & Environmental Specifications
VIVOTEK AW-IHB-1040 Technical Specifications
| Segment | Lite Managed PoE Switch |
| Description | Industrial 2x GbE 802.3bt (90W) + 6x GbE 802.3at (30W) + 2x GbE SFP |
| PoE Port Ethernet | 8× GbE |
| Uplink Port Ethernet | 2× GbE SFP |
| Total Ports | 10 |
| PoE Ports | 8 |
| Max. PoE Output | Ports 1-2: 802.3bt, up to 90W · Ports 3-8: 802.3at, up to 30W |
| PoE Power Budget | 300W |
| PoE Standard | 802.3af / at / bt |
| PoE Pin Assignment | Ports 1-4 (bt): 4 pairs, 1/2(+) 3/6(-) and 4/5(+) 7/8(-) · Ports 5-8 (af/at): 2 pairs, 1/2(+) 3/6(-) |
| Surge Protection | 6kV |
| Switching Bandwidth | 20 Gbps |
| Buffer Memory | 1.5 Mb |
| Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frames | 9216 Bytes |
| Max. Power Consumption | 310W |
| Spanning Tree | IEEE 802.1D (STP), IEEE 802.1w (RSTP) |
| Trunking | IEEE 802.3ad (LACP), static aggregation |
| VLAN | 802.1Q tag-based (4096 VLAN IDs), port-based VLAN |
| Hardware Queues | 8 |
| Classification | Port-based, 802.1p |
| Rate Limiting | Ingress & egress, per port |
| Priority Queue Scheduling | WRR (Weighted Round Robin) |
| Marking | DSCP & Class of Service |
| Monitoring | Port Mirroring |
| Maintenance | Firmware Upgrade |
| PoE Management | PoE On/Off Control, PoE Alive Checking (non-stop PoE), Extended PoE Mode (up to 250m/10Mbps) |
| Power Input | 48-52VDC (bt up to 60W) · 52-56VDC (bt up to 90W) |
| Redundancy | Redundant power backup supported |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5%–90%, non-condensing |
| Dimensions | 165 (W) × 123 (D) × 53.5 (H) mm |
| Weight | 0.9 kg |
| Certifications | CE, UKCA, FCC, VCCI, BSMI |
| Included Accessories | Quick Installation Guide (QIG), Temperature Sensor, Terminal Block, DIN Rail Bracket |
Applications and Use Cases
Built for edge PoE power delivery in demanding, unconditioned outdoor and industrial environments.
Outdoor Camera Installations
Powers PoE cameras like VIVOTEK's outdoor dome and bullet range.
Industrial & Utility Sites
Wide temperature range and surge protection for harsh sites.
Remote & Unmanned Cabinets
DIN rail mounting for compact cabinet installs.
Perimeter Security Networks
PoE Alive Checking keeps remote cameras recoverable.
Harsh Climate Deployments
-40°C to 75°C range for GCC desert heat and cold-store sites.
Long-Distance PoE Runs
Extended PoE mode reaches devices up to 250m away.
